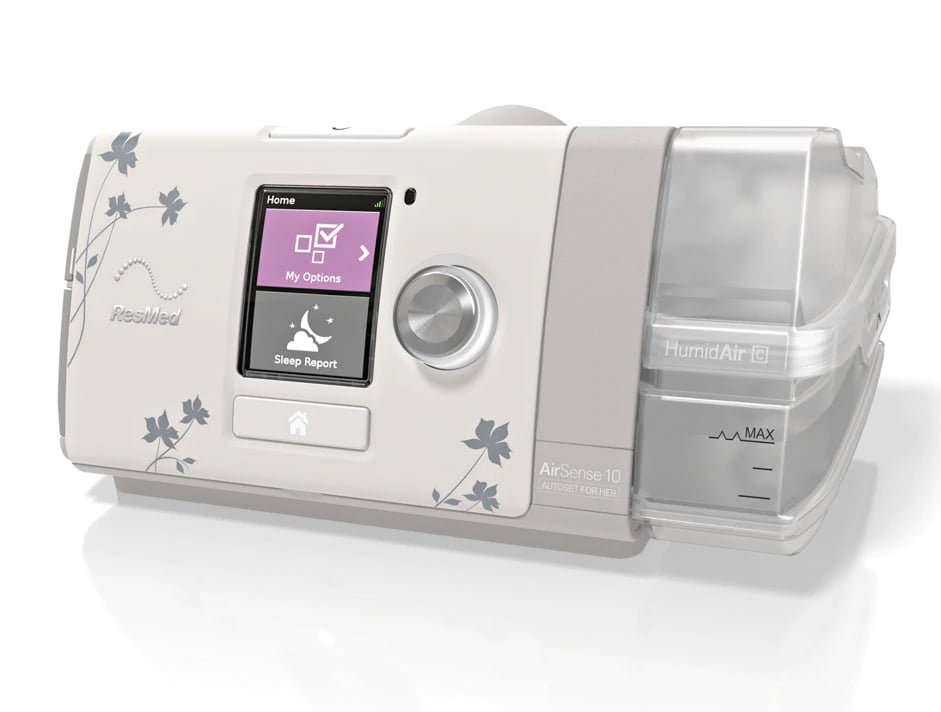

AirSenseTM 10 AutoSet TMfor Her

There is evidence to show that obstructive sleep apnea (OSA) in women is different from OSA in men1-3. Typically, women take longer to fall asleep and have more flow limitations and more frequent arousals during sleep than men.1-3

Women with OSA also tend to have fewer and shorter apneas or hypopneas, as well as a lower apnea–hypopnea index (AHI).4 And with nearly 40% of newly diagnosed sleep apnea patients being women,5 it’s important to have a therapy device specifically designed to meet their needs.

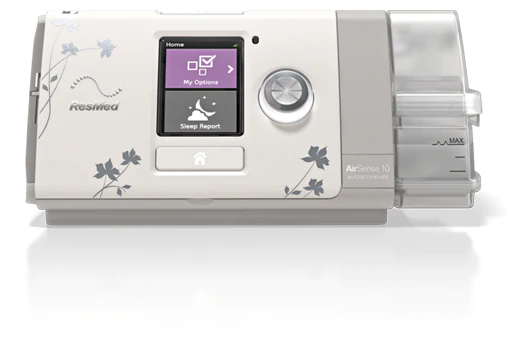

The AirSenseTM 10 AutoSet for Her contains the first dedicated algorithm designed to treat mild to moderate obstructive sleep apnea in female patients.

The device also features built-in wireless connectivity* so you can stay more connected to your patients than ever before.

* Wireless communication depends on network availability

Unique treatment for women

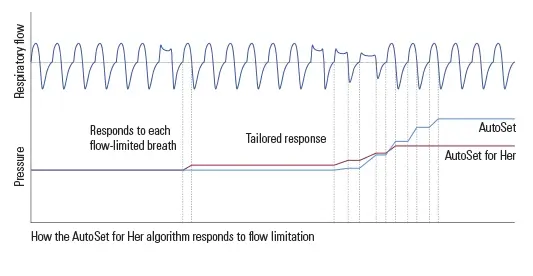

The AirSenseTM 10 AutoSet for Her is based on the AutoSet algorithm and is tailored to the characteristics of OSA in women. Research has shown that female patients have greater flow limitation6 so the AutoSet for Her algorithm is designed to be more sensitive to flow limitation.

AutoSet-for-Her_KF_01_B2B_01

A comfortable start

AutoRampTM  with sleep onset detection starts by delivering a low pressure until patients fall asleep. Once it detects they’re asleep, it comfortably increases the pressure to the prescribed level to ensure therapy is delivered the moment they need it.

AutoSet-for-Her_KF_02_B2B-01

Other features

  • Built-in ambient light sensor adjusts the brightness of the screen based on the light in the room. So if patients need to get up during the night, the screen’s back light won’t disrupt their bed partners.
  • EasyBreathe motor is designed to reduce the sound of the device, offering patients and their bed partners a more peaceful night’s sleep.
  • Consistent humidification throughout the night with the integrated HumidAir™ humidifier with advanced Climate Control technology helps patients adjust to treatment and use therapy longer.
  • Respiratory Effort-Related Arousal (RERA) reporting. The device detects RERAs providing additional clinical insight by identifying short apneas and flow limitation-related arousals often observed in female patients.

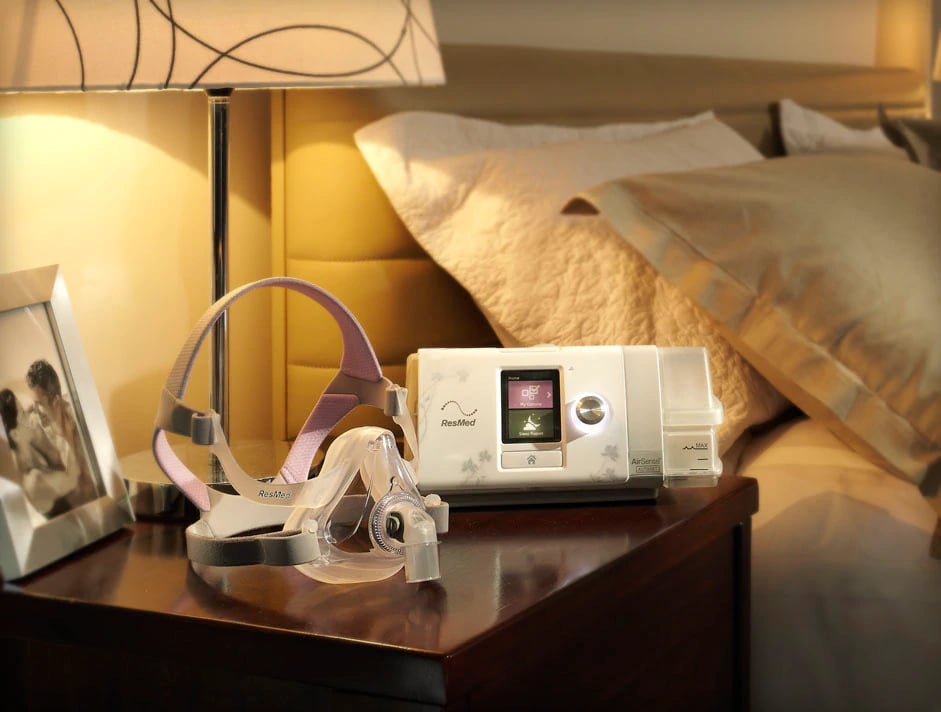

  • A complete offering:  The AirSense 10 AutoSet for Her can be paired with the AirFit™ for Her mask series to provide female patients with a complete therapy solution.

2750693505001_3739411381001_vs-53f422cae4b0d6ad125a0e02-672293880001

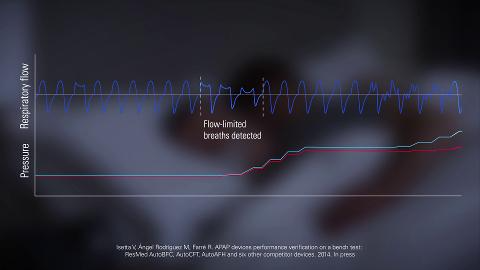

AutoSet for Her (AU)

humidification

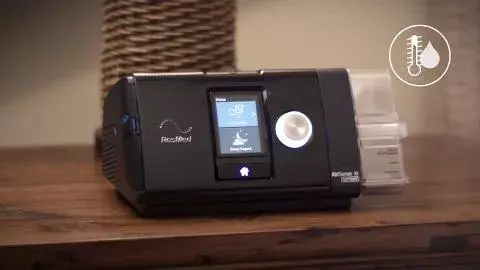

Humidification (AU)

2750693505001_3739418284001_vs-53f42446e4b0a7d10117e8a0-1083021586001

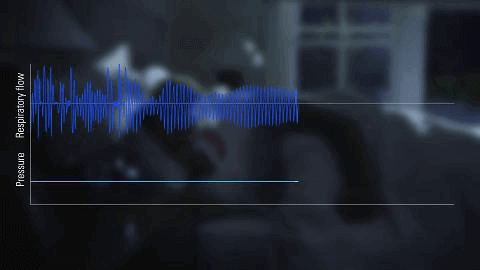

AutoRamp (AU)

2750693505001_3739424553001_vs-53f423dce4b059419f8514b8-782203298001-1

CSA and CSR (AU)

2750693505001_3739399022001_vs-53f42249e4b059419f851499-1083021586001

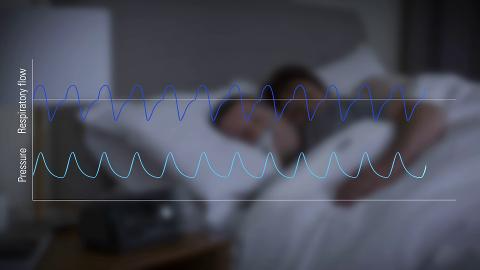

Easy-breathe (AU)

Made to work together

Devices

AirSense 10 Autoset for Her

AitFitP10_carousel

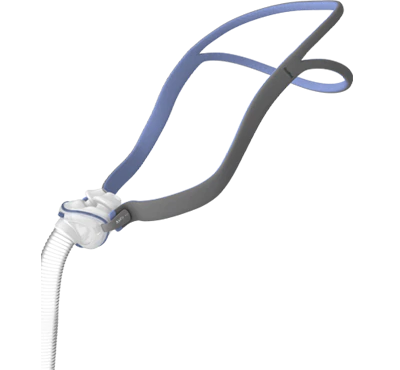

AirFit™ P10

Nasal Pillows Mask.

AirFit_N20

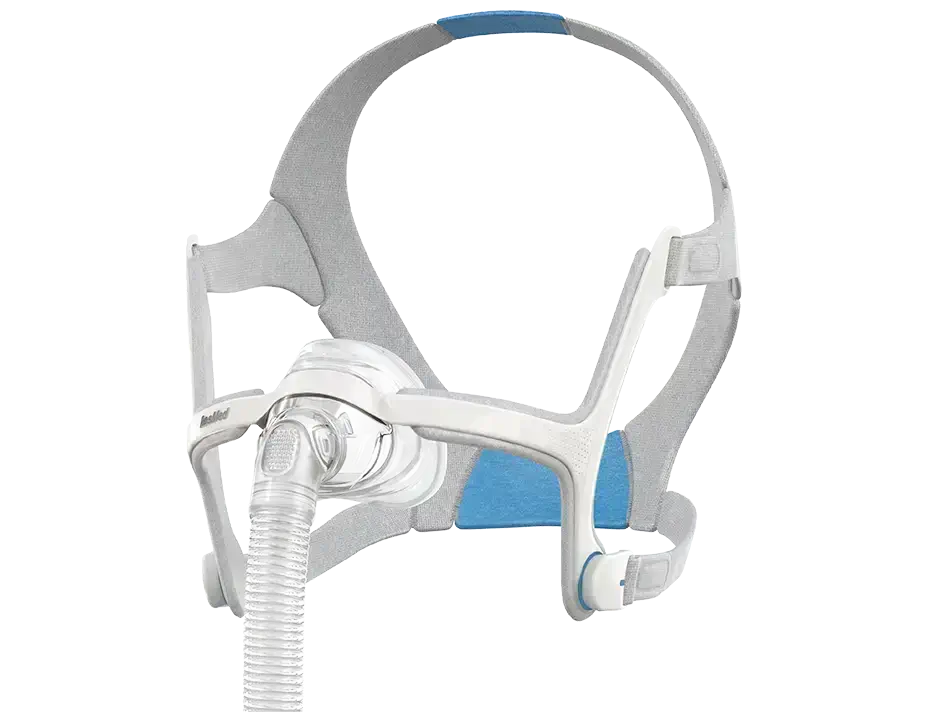

AirFit™ N10

Compact Nasal Mask.

AirFit_F20

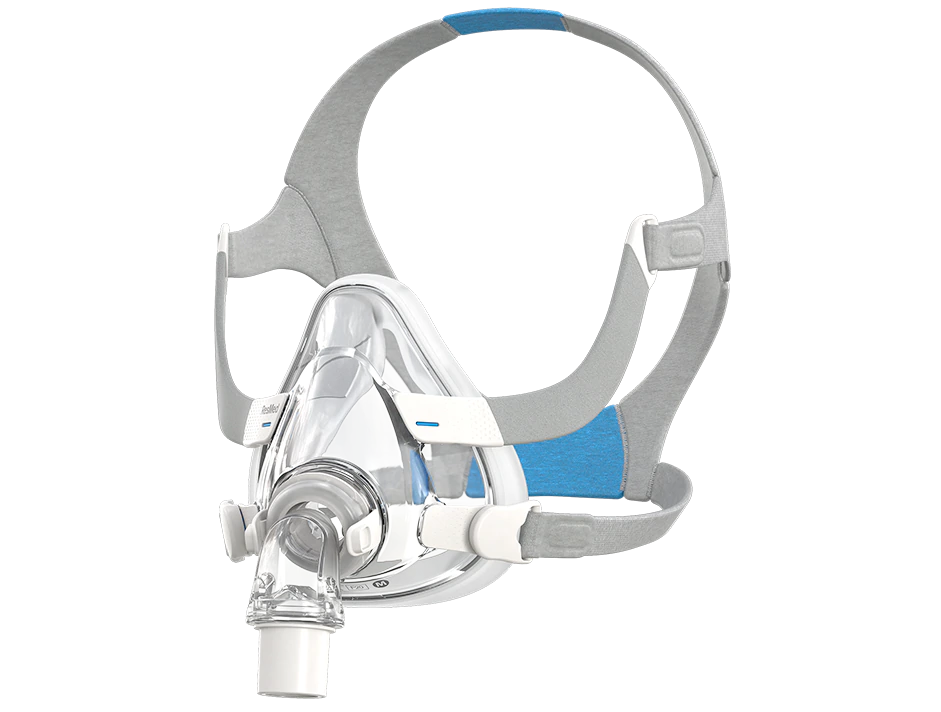

AirFit™ F10

Compact Full face Mask.

AitFitP10-forher_carousel

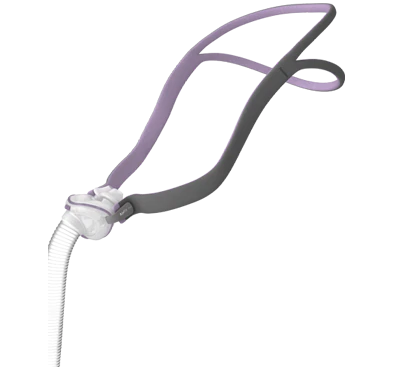

AirFit™ P10 for Her

Nasal Pillows Mask in a stylish, female design.

AirFit-N20-for-Her

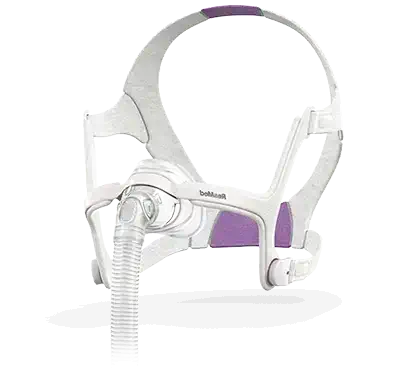

AirFit™ N10 for Her

Compact Nasal Mask in a stylish, female design.

AirFit-F20-for-Her

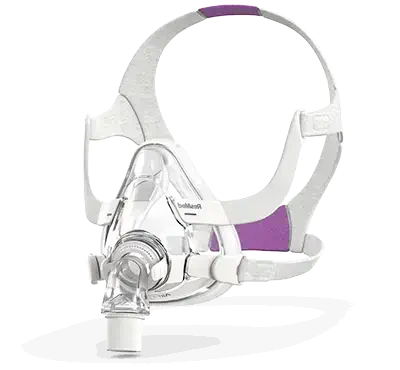

AirFit™ F10 for Her

Compact Full face Mask in a stylish, female design.

Accessories_ClimateLine-Air_heroimage (2)

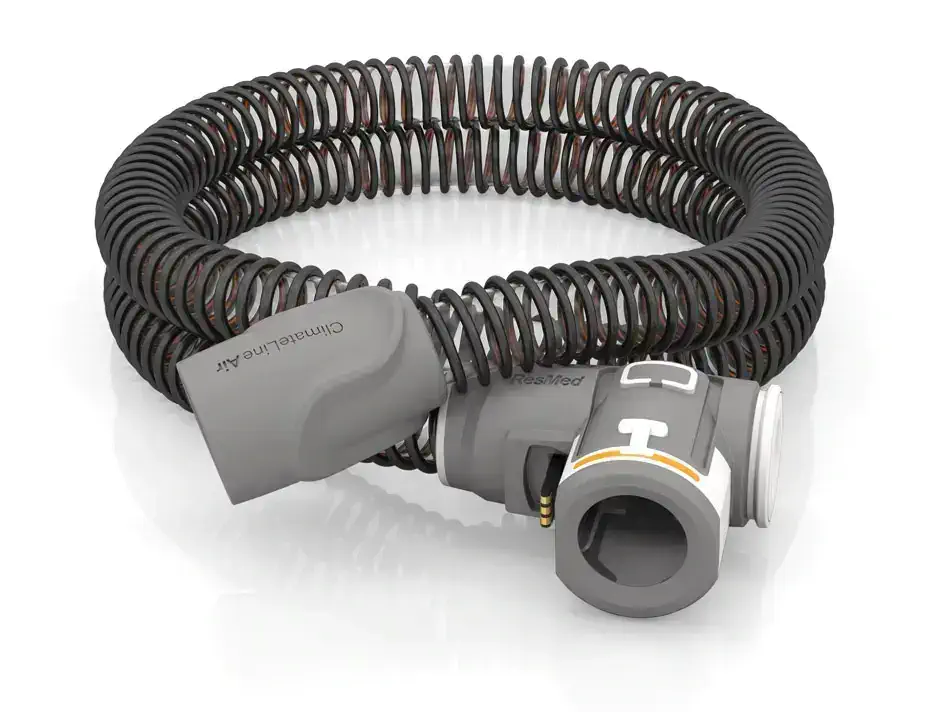

ClimateLineAir™ heated tube

The ClimateLineAir heated tube is the key that unlocks ResMed's Climate Control solution for the AirSense 10 and AirCurve 10 series of devices.

SlimLine_1

SlimLine™ Tubing

The SlimLine small diameter air tube is exceptionally light and flexible, which can reduce tube drag.

ClimatetLineMax Oxy  IMG_9119_1

ClimateLine™

The ClimateLine heated tube is the key technology in the Climate Control system.

Accessories_HumidAir_heroimage (2)

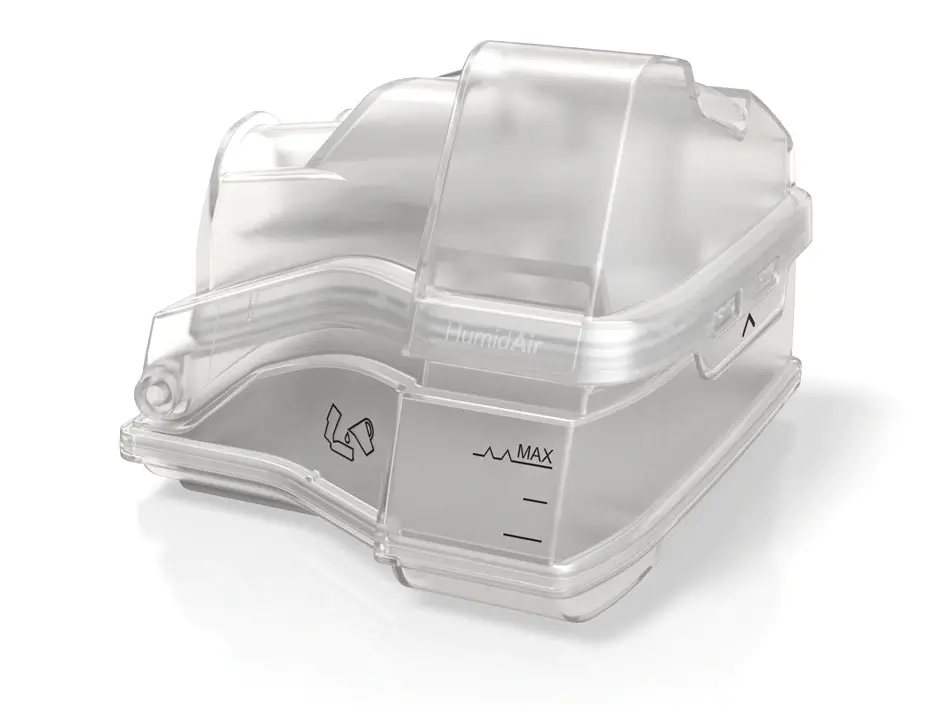

HumidAir™ Heated Humidifier

Designed to seamlessly integrate with the device, the HumidAir heated humidifier offers relief from dryness and congestion.

For a fully integrated approach to patient care, prescribe ResMed Air Solutions products.

Functional features

  CPAP Elite AutoSet AutoSet for Her
CPAP
AutoSet
AutoSet for Her
Cheyne-Stokes respiration detection
Central apnea detection
RERA reporting
AutoSet algorithm with AutoSet Response
AutoRamp with sleep onset detection
Advanced HumidAir technology
Enhanced Climate Control Auto
Expiratory Pressure Relief (EPR™)
SmartStart™
Built-in wireless connectivity*

*Available only on specific AirSense 10 device models. Wireless communication depends on network availability.

Technical specifications

Dimensions (H x W x D) (Device and water tub)   116mm x 255mm x 150mm
Weight 1248g
Air filter Standard: Average arrestance: > 75% for ~7 micron dust Hypoallergenic: Efficiency: >98% for ~7-8 micron dust. >80% for ~0.5 micron dust.
Aircraft use Meets Federal Aviation Administration requirements for all phases of air travel.
Operating pressure range 4 to 20 cm H2O
Pressure level measured according to ISO 17510-1:2007 (CPAP mode):
SlimLine or Standard air tubing 26.6 dBA with uncertainty of 2 dBA
Power level measured according to ISO 17510-1:2007 (CPAP mode):
SlimLine or Standard air tubing 34.6 dBA with uncertainty of 2 dBA
Sound (Declared dual-number noise emission values in accordance with ISO 4871:1996.)
Air tubing ClimateLineTM Air SlimLineTM Standard
Length 6'6” 6’ 6’ 6”
Inner diameter 0.6" 0.6" 0.75"
Electromagnetic compatibility Complies with all EMC requirements according to IEC60601-1-2:2007 for residential, commercial and light industry environments. It is recommended that mobile communication devices be kept at least 1m away.

References

1

pn CM, Davidson TM and Ancop-Israel S. Gender differences in obstructive sleep apnea and treatment imppcations. Sleep Med Rev 2008; 12(6):481-96

2

Callop N, Cassel DK. Snoring and sleep disordered breathing. Sleep Medicine. Lee-Chiong T Jr SM, Carskadon M, Editor. 2002 Hanley & Belfus: Philadelphia. 349-355.

3

Mihai V, Rusu G and Mihăescu T. Demographic cpnical and polysomnographic differences between men and women. Pneumologia 2010; 59(2): 64-7.

4

O’Connor C, Thornlye KS and PJ Hanly. Gender differences in the polysomnographic features of obstructive sleep apnea. Am J Respir Crit Care Med 2000; 161(5):1465-726.

US Sleep Market Measures.

5

Stoohs R, Janicki J, Hohenhorst W. Obstructive sleep apnea syndrome and upper airway resistance syndrome. Gender-related differences. HNO. 2007 Oct;55(10):792-7.
