AirSenseTM 10 AutoSet TM

The AirSense 10 AutoSet is a premium auto-adjusting therapy device. It features AutoRamp™ with sleep onset detection, expiratory pressure relief (EPR™) and Easy-Breathe technology. The AirSense 10 AutoSet provides advanced event detection, including indications of central sleep apnea and Cheyne-Stokes respiration. Optional pulse oximetry monitoring is also available. Modes include AutoSet and CPAP.

Current AirSense 10 devices do not have built-in cellular connectivity functionality. This means the device has no wireless data transmission capability and no compatibility with myAir, ResMed’s online support program and app.

AutoSet Response feature

ResMed’s AutoSet algorithm now allows for additional customisation of therapy with the new AutoSet Response feature which offers all the benefits of the enhanced AutoSet algorithm with gentler pressure increases for additional comfort.

AirSense10_CPAP_KF_01_B2B_01

Central apnea and Cheyne-Stokes respiration detection

The AirSense 10 AutoSet differentiates between obstructive and central apneas and can also detect indications of Cheyne-Stokes respiration, so you can be confident that your patients are receiving appropriate therapy.

AirSense-10-AutoSet_KF_02_B2B_01

Other features

  • AutoRamp™. This feature with sleep onset detection starts by delivering a low pressure for greater patient comfort. Then, once the patient falls asleep, it increases the pressure to the prescribed level.
  • Built-in ambient light sensor adjusts the brightness of the screen based on the light in the room. So if patients need to get up during the night, the screen’s back light won’t disrupt their bed partner.
  • Easy-Breathe motor is designed to reduce the sound of the device, offering patients and their bed partners a more peaceful night’s sleep.
  • Expiratory pressure relief (EPR) maintains the optimal treatment for the patient during inhalation and reduces pressure during exhalation.
  • Consistent humidification throughout the night with the integrated HumidAir™ humidifier with advanced Climate Control technology helps patients adjust to treatment and use therapy longer.1

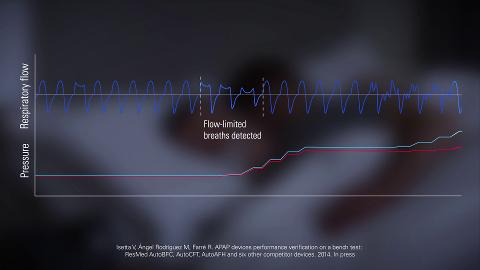

2750693505001_3739411381001_vs-53f422cae4b0d6ad125a0e02-672293880001

AutoSet (AU)

humidification

Humidification (AU)

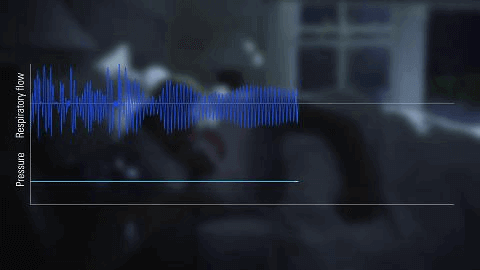

2750693505001_3739418284001_vs-53f42446e4b0a7d10117e8a0-1083021586001

AutoRamp (AU)

2750693505001_3739424553001_vs-53f423dce4b059419f8514b8-782203298001-1

CSA and CSR (AU)

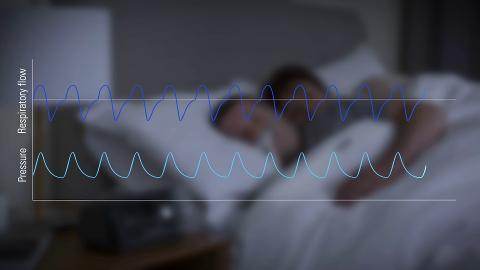

2750693505001_3739399022001_vs-53f42249e4b059419f851499-1083021586001

Easy-breathe (AU)

Made to work together

Devices

AirSense 10 Autoset

AitFitP10_carousel

AirFit™ P10

Nasal Pillows Mask.

AirFit_N20

AirFit™ N20

Fitting 99.4% of faces worldwide, AirFit N20’s blend of intuitive design and comfort-driven features is designed to deliver exceptional performance in a nasal mask.

AirFit_F20

AirFit™ F20

Designed to fit every face with ease, AirFit F20 combines innovative cushion design with easy-to-use features to deliver an outstanding experience for full face mask users.

AitFitP10-forher_carousel

AirFit™ P10 for Her

Nasal Pillows Mask in a stylish, female design.

AirFit-N20-for-Her

AirFit™ N20 for Her

Fitting 99.4% of faces worldwide, AirFit N20’s blend of intuitive design and comfort-driven features is designed to deliver exceptional performance in a nasal mask for her.

AirFit-F20-for-Her

AirFit™ F20 for Her

Designed to fit every face with ease, AirFit F20 combines innovative cushion design with easy-to-use features to deliver an outstanding experience for

Accessories_ClimateLine-Air_heroimage (2)

ClimateLineAir™ heated tube

The ClimateLineAir heated tube is the key that unlocks ResMed's Climate Control solution for the AirSense 10 and AirCurve 10 series of devices.

ClimatetLineMax Oxy  IMG_9119_1

ClimateLine™

The ClimateLine heated tube is the key technology in the Climate Control system.

SlimLine_1

SlimLine™ Tubing

The SlimLine small diameter air tube is exceptionally light and flexible, which can reduce tube drag.

Accessories_HumidAir_heroimage (2)

HumidAir™ Heated Humidifier

Designed to seamlessly integrate with the device, the HumidAir heated humidifier offers relief from dryness and congestion.

For a fully integrated approach to patient care, prescribe ResMed Air Solutions products.

Functional features

  CPAP Elite AutoSet AutoSet for Her
CPAP
AutoSet
AutoSet for Her
Cheyne-Stokes respiration detection
Central apnea detection
RERA reporting
AutoSet algorithm with AutoSet Response
AutoRamp with sleep onset detection
Advanced HumidAir technology
Enhanced Climate Control Auto
Expiratory Pressure Relief (EPR™)
SmartStart™
Built-in wireless connectivity*

*Available only on specific AirSense 10 device models. Wireless communication depends on network availability.

Technical specifications

Dimensions (H x W x D) (Device and water tub)   116mm x 255mm x 150mm
Weight 1248g
Air filter Standard: Average arrestance: > 75% for ~7 micron dust Hypoallergenic: Efficiency: >98% for ~7-8 micron dust. >80% for ~0.5 micron dust.
Aircraft use Meets Federal Aviation Administration requirements for all phases of air travel.
Operating pressure range 4 to 20 cm H2O
Pressure level measured according to ISO 17510-1:2007 (CPAP mode):
SlimLine or Standard air tubing 26.6 dBA with uncertainty of 2 dBA
Power level measured according to ISO 17510-1:2007 (CPAP mode):
SlimLine or Standard air tubing 34.6 dBA with uncertainty of 2 dBA
Sound (Declared dual-number noise emission values in accordance with ISO 4871:1996.)
Air tubing ClimateLineTM Air SlimLineTM Standard
Length 6'6” 6’ 6’ 6”
Inner diameter 0.6" 0.6" 0.75"
Electromagnetic compatibility Complies with all EMC requirements according to IEC60601-1-2:2007 for residential, commercial and light industry environments. It is recommended that mobile communication devices be kept at least 1m away.

Reference

1

01 Kline LR, Carlson P. NCPAP acceptance and compliance is altered by humidification. Sleep 1999;22: Suppl. S230
