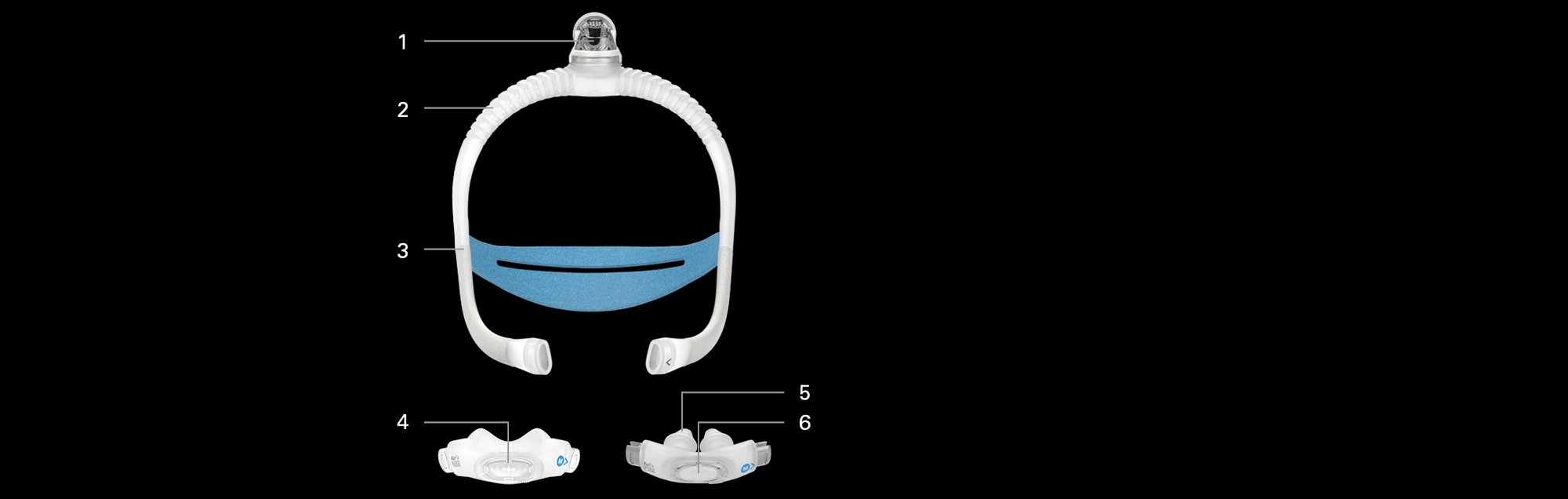

AirFit N30i & AirFit P30i Features

1. Quick Release Elbow - allows for flexible movement and connection

2. SpringFit frame - designed for a broader fit range

3. Integrated soft sleeves - designed for built-in comfort

4. AirFit N30i curved cushion with QuietAir - cradles the shape of the nose *NEW

5. AirFit P30i pillows cushion - interchangeable with AirFit N30i nasal cushion

6. QuietAir vent - designed to minimise noise and disturbance

Support

AirFit N30i - Supporting you
AirFit N30i - Supporting patients
AirFit P30i - Supporting you
AirFit P30i - Supporting patients
Swipe

Choosing the right frame size

  1. Use the provided template as a guide to which frame size is most suitable.
  2. If you try the standard size on your patients first, and the elbow sits behind the centre of their head, it’s too large.
  3. If the frame is too large, try the small size frame for a better fit.
  4. If you try the small size on your patients first, and the elbow sits in front of the center of their head, it’s too small.
  5. If the frame is too small, try the standard size frame for a more comfortable fit.

Choosing the right cushion size

  1. Use the provided template and your judgment to determine whether a patient has a narrow or wide nose.
  2. If the patient has a narrow nose, place the blue/red side of the template under their noise. If the patient has a wide noise, place the black/purple side of the template under their nose.
  3. Assess whether their nose falls inside or exceeds the width or length margins on the template to determine their cushion size.
  4. Select the matching cushion from those provided.

Fitting

  1. Bring the mask above your head and then down over your face while ensuring the elbow is centred on the top of your head.
  2. Place the headgear behind your head and the cushion under your nose.
  3. Adjust the headgear until the mask and cushion are comfortable.
  4. Disconnect the elbow from the top of the frame and attach it to the air tubing.
  5. Reconnect the elbow with the air tubing to the top of the frame.

Managing leak

  1. Locate where the air is escaping from, which is typically above or below the cushion.
  2. Adjust the cushion by gently pulling it away from your face and letting it reseal itself.
  3. Adjust the headgear as needed to achieve a more secure seal.
  4. Check the frame is secure and that the mask elbow and tubing are not pulling on the mask.

Daily cleaning

  1. Take the cushion off the frame as per disassembly instructions.
  2. Soak the cushion in warm water and a mild liquid detergent.
  3. Clean the cushion and its vent holes inside and out with a soft bristle brush.
  4. Rinse the cushion thoroughly under running tap water.
  5. Leave the cushion to air dry away from direct sunlight.

Weekly cleaning

  1. Disassemble the mask into its components as per disassembly instructions.
  2. Soak each of the components (headgear, elbow and frame) in warm water and a mild liquid detergent.
  3. Clean the elbow and frame with a soft bristle brush and the headgear with your hands.
  4. Rinse each of the components thoroughly under running tap water.
  5. Squeeze the headgear and the sleeves on the frame with a clean towel to remove excess water.
  6. Leave each of the components to air dry away from direct sunlight.

Assembly

  1. Ensure you have all the mask components and parts together.
  2. Connect the elbow to the frame.
  3. Thread the left end of the headgear into the left side of the frame and fasten the tab.
  4. Thread the right end of the headgear into the right side of the frame and fasten the tab.
  5. Align the arrow on the cushion to the arrow on the frame and connect together.
  6. Connect the remaining end of the cushion and frame together with the ResMed logo facing the right way up through the headgear.

Disassembly

  1. Ensure your mask is disconnected from your machine.
  2. Pull the cushion out from one end of the frame.
  3. Pull the cushion out from the other end of the frame.
  4. Unfasten the headgear tab from one side and pull it out of the frame.
  5. Unfasten the headgear tab from the other side and pull it out of the frame.
  6. Squeeze the side buttons on the elbow and pull up to release it from the frame.

Vent connection

  1. To disconnect the vent, gently pull the nasal cradle cushion away and slide the vent out.
  2. To reconnect the vent, align the notch on the nasal cradle cushion with the groove on the vent. Then gently pull the nasal cradle cushion over the vent.

Choosing the right frame size

  1. Go to the sizing section in the user guide to determine which frame size is most suitable.
  2. For male patients, start with the standard frame size. For female patients, start with the small frame size.
  3. If the frame is too large, try the small size frame for a better fit.
  4. If you try the small frame first and the frame sits too close to your patient's eyes, size up to the standard frame for a better fit.
  5. If the frame is too small, try the standard size frame for a more comfortable fit.

Fitting

  1. Pull the mask frame and headgear over your patient's head so that the elbow is at the top of their head and the headgear is behind it.
  2. Place the cushion under your patient's nose and align the pillows into their nostrils.
  3. Tighten or loosen headgear until the mask and cushion fit comfortably.
  4. Squeeze the elbow's side buttons and pull the elbow away from frame.
  5. Connect the air tubing from the device to the elbow and then reattach the elbow to the frame.

Managing mask leak

  1. If air escapes the mask from anywhere other than the masks vents, you will need to locate the leak and try each of the following steps to correct it.
  2. Try wiggling the mask side to side to realign the cushion and the pillows.
  3. Try resealing the mask by pulling the cushion and pillows away from your patient's face and letting them settle back into position.
  4. Try adjusting the headgear straps to secure the cushion closer or further away from your patient's face.

Daily mask cleaning

  1. Take the cushion off the frame as per disassembly instructions.
  2. Soak the cushion in warm water and a mild liquid detergent, and ensure there are no air bubbles while soaking.
  3. Hand wash the cushion with a soft bristle brush, paying extra attention to the vent holes.
  4. Rinse the cushion thoroughly under running tap water.
  5. Shake the cushion to remove excess water.
  6. Leave the cushion to air dry away from direct sunlight.

Weekly mask cleaning

  1. Disassemble the mask into its components as per disassembly instructions.
  2. Soak each of the components (elbow, frame and headgear) in warm water and a mild liquid detergent, and ensure there are no air bubbles while soaking.
  3. Hand wash elbow and frame with a soft bristle brush and the headgear with your fingers.
  4. Rinse each of the components thoroughly under running tap water.
  5. Squeeze the frame sleeves on a clean towel to remove excess water.
  6. Leave the mask components to air dry away from direct sunlight.

Assembling the mask

  1. Ensure you have all the mask components and parts together.
  2. Connect the elbow to the top of the frame until it clicks in.
  3. Insert the headgear straps into the frame and fold the fastening tabs back to secure.
  4. Insert the ends of the frame into the cushion while ensuring that the arrows present on both the cushion and frame are aligned.

Disassembling the mask

  1. Ensure your mask is disconnected from your machine.
  2. Pull the cushion out from the frame.
  3. Unfasten the tabs from the headgear and pull the straps out of the frame.
  4. Squeeze the elbow's side buttons and pull the elbow up and away from the frame.

Vent connection

  1. To disconnect the vent, gently pull the nasal pillows piece away and slide the vent out.
  2. To reconnect the vent, align the notch on the nasal pillows piece with the groove on the vent, and then gently pull the nasal pillows piece over the vent.

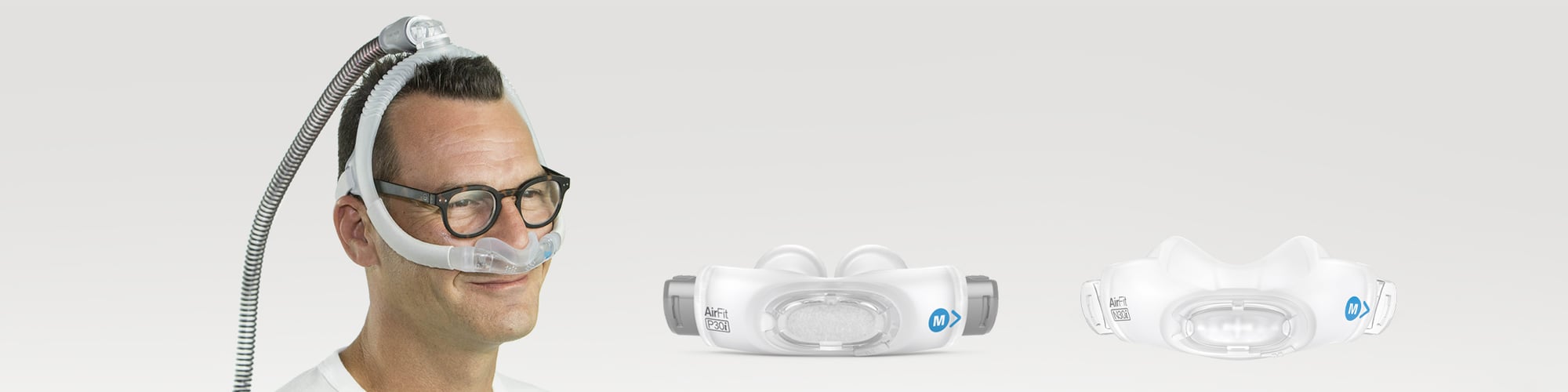

Sizing and fitting

The AirFit N30i and AirFit P30i has a streamlined setup designed to minimise fitting time and stock management. There are only two frame sizes that aims to deliver a good fit for the vast majority of patients. The AirFit N30i nasal cradle cushion and AirFit P30i pillows cushion have been designed to be interchangeable, offering different options for patients.

Cushion Fitting Template
Frame Fitting Template



30day



30 day money back guarantee

We're so sure that your customers will love our AirFit series of masks, that we are offering a 30 day money back guarantee if they are not completely satisfied. Terms and conditions apply.
