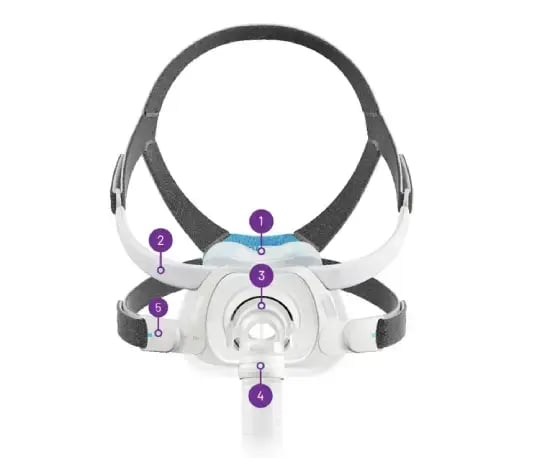

ResMed AirFit^TM F40
toolkit

Find your cushion size

1. The cushion size can be found on the bottom right side of the cushion. There are 3 cushion sizes available. Small-Wide, Medium and Large.
2. You can use the fitting template to see which cushion size fits best. In front of a mirror, place the fitting template under your nose.
3. Position your nose above the blue Medium cushion box. Check if your nose width and length fit into the box. Repeat the process with the purple Small-Wide and grey Large cushion box.
4. Choose the size where your nose fits into the box

Find your Headgear Size

1. The headgear size can be found at the back of the headgear on the colored neckpad. There are 3 headgear sizes available. Small, Standard and Large.

Mask and Seal Comfort

1. Ensure that Pillows is selected in the mask setting options of your ResMed device.
2. With the device turned on and blowing air, adjust the position of the cushion for the most comfortable fit under your nose. Ensure that the cushion is not creased and the headgear is not twisted.
3. The top headgear strap should sit on top of your head and not too far forward or back. Reposition the strap if needed to ensure the cushion has a good seal under the nose.
4. To fix any leaks around the nose, pull the cushion slightly away from the face and reposition the cushion so that it sits comfortably under the nose. Adjust the upper headgear straps, if required.

Disassemble your mask

1. Undo the fastening tabs on the upper headgear straps and pull from the frame.
2. Squeeze the side buttons on the elbow, and detach from the vent ring.
3. Pull the cushion stud out of the frame stud hole, repeat on the other side.
4. Pull the vent ring from the cushion.

Cleaning your mask (daily and weekly)

1. Soak components in warm water with a mild liquid detergent. Ensure that there are no air bubbles while soaking.
2. Shake the components vigorously in the water and hand wash with a soft bristle brush. Pay particular attention to the vent holes in the QuietAir/Multi-hole vent ring.
3. Squeeze the fabric components to remove excess water.
4. Thoroughly rinse the components under running water.
5. Leave the components to air dry out of direct sunlight.

Reassembling your mask

1. Insert the cushion stud into the frame stud hole. Repeat on the other side.
2. Align the vent ring groove against the cushion opening. Press firmly to secure in place and ensure that the cushion opening sits into the vent ring groove.
3. Connect the elbow to the vent ring.
4. With dark grey fabric side facing inwards, insert both upper headgear straps into the frame from the inside and fold the fastening tabs over to secure.

Vent Removal

1. To remove, pull the vent ring from the cushion.
2. To reassemble, align the vent ring groove against the cushion opening. Press firmly to secure in place and ensure that the cushion opening sits into the vent ring.
